Small Size Passive Rfid Coin Tag , Adhesive Nfc Smart Rfid Token Tag

Brand Name : OEM

Model Number : DTag-01

Certification : ISO CE ROSH

Place of Origin : China

MOQ : negotiable

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000000pcs/year

Delivery Time : 7-10 days

Packaging Details : 2000pcs/roll,5 rolls in one carton

Operating Frequency : 125KHz LF,13.56MHz HF,890-960MHz UHF

Tag's Chip : MF Chips,UHF Chips,Atmel T5577,TK4100,EM4200,EM4305,EM4550

Reading distance : 1-3cm(up to reading device and work environment

Materials : Copper antenna,COB chip ,3M adhensive

Dimension : 30mm diameter or customized

Work Temperature : -10°C to +50°C

Application : Smart Phone Payment

Sample : Available for Testing

Contact Now

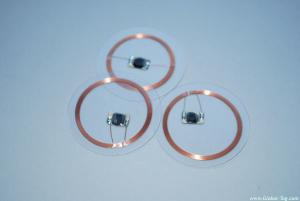

Small size passive rfid tag / coin disc nfc tag / nfc token tag adhesive

Overview

This rfid tag size at 15/20/25mm or customized size with material PVC, PET, ABS or paper, the mini shape like a button, coin or disc. Suface printing is available based on client request, like CMYk offset printing, logo printing, series number and etc. Also free sample for program test. As a professional manufacturer, the best price and good quality are available for sure!

Main Application

1. E - ticket system

2. payment management

3. Access control system

4. Library managemnet

5. stock management

6. parking system

7. clothing management etc.

Chip Option

-- 125KHz : EM4200, EM4305, TK4100, TK4168, T5577, ect

-- 860-960MHz: Alien H3, Impinj Monza 3 / 4 / 5 / 6

Product Parameter

RFID disc coin tag
1. Material	Antenna Material	Copper/Aluminum foil
	Surface material	PVC/PET/ABC
2. RFID Parameters	Frequency	125KHz,13.56MHz,860-960MHz
	Protocol	ISO 11784 , 1S014443A ,epc gen2
	Operation distance	Depend on the chipand reader power
	R/W	Read only or R&W
	Data retention	>10 years
3. Dimension	20/25/30mm or customized
4. Environment	Operation temperature	-25°C~85°C
6. Customzied Crafts	Surface	Glossy/Matt/Frosted
	Printing	Plain white, offset printing or silkscreen printing
	Printable	Custom design is available
	Number	UID code, series code, or customized
7. Application	Access control, membership, bus, parking etc
